Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: HONGBAO
Chứng nhận: ISO9001
Số mô hình: HG-OP
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1mt
Giá bán: negotiable
chi tiết đóng gói: Vỏ ván ép, hộp gỗ
Thời gian giao hàng: 45 - 60 ngày
Điều khoản thanh toán: L/C, T/T.
Khả năng cung cấp: 3000mt/tháng
Vật liệu: |
30crmo （4130/34CRMO4, 42CRMO （4140/42CRMO4, 40MN2, 45MNMOB, 30CRMNSIA, 4135, 1541 |
Tiêu chuẩn: |
GB/T 9808, ASTM A519, DIN2391, EN10305-1 |
Phạm vi đường kính ngoài: |
4-219mm |
Phạm vi WT: |
0,5-20mm |
Xử lý: |
cán nguội |
Vật liệu: |
30crmo （4130/34CRMO4, 42CRMO （4140/42CRMO4, 40MN2, 45MNMOB, 30CRMNSIA, 4135, 1541 |
Tiêu chuẩn: |
GB/T 9808, ASTM A519, DIN2391, EN10305-1 |
Phạm vi đường kính ngoài: |
4-219mm |
Phạm vi WT: |
0,5-20mm |
Xử lý: |
cán nguội |
Description

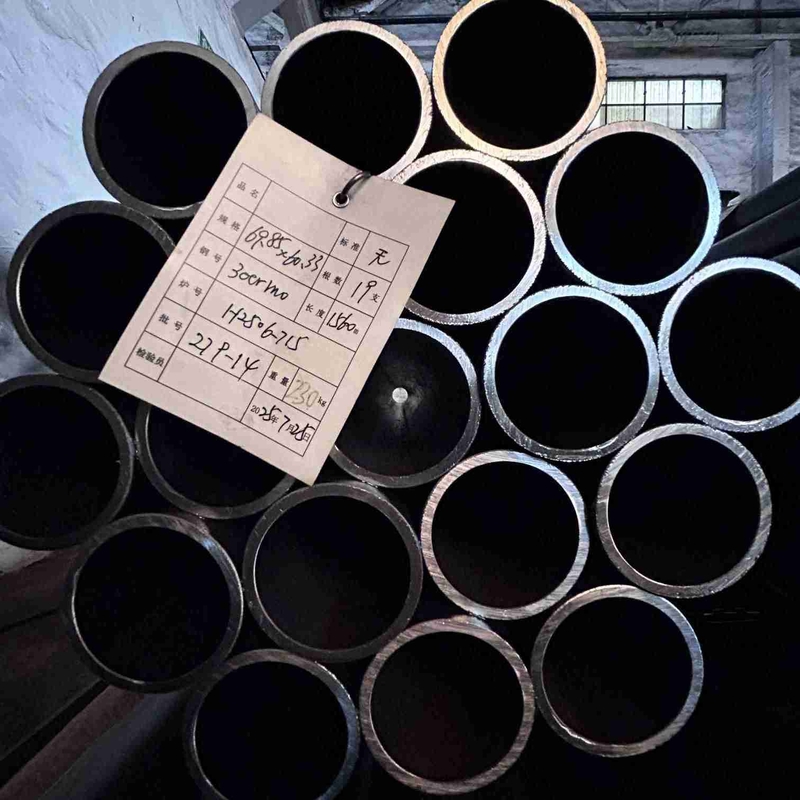

This high-performance chromoly steel tubing represents a premium series of oil well drilling pipes manufactured from AISI 4130, 4140, and 4145 alloy steels, specifically engineered for demanding casing applications in the oil and gas industry. These seamless chromoly tubes offer superior mechanical properties and enhanced performance characteristics compared to conventional carbon steel pipes, making them ideal for critical downhole operations where reliability and durability are essential.
The triple-grade composition provides engineers with optimized material selection based on specific well requirements: AISI 4130 offers excellent strength with good weldability, AISI 4140 delivers enhanced strength and wear resistance, while AISI 4145 provides the highest strength and hardness for the most demanding applications. All three grades feature chromium-molybdenum alloying elements that contribute to their superior tensile strength, exceptional toughness, and improved fatigue resistance in challenging downhole environments.
Manufactured through advanced seamless extrusion processes, these drilling pipes maintain precise dimensional accuracy and wall thickness consistency throughout their length. The heavy-wall construction ensures maximum collapse resistance and structural integrity when deployed as casing strings in deep well, high-pressure, and high-temperature applications. Each grade undergoes specific heat treatment processes - including quenching and tempering - to achieve optimal mechanical properties tailored to their respective chemical compositions.
Specification
| Specifications | ASTM, ASME and API |
| Size | O.D.: 4 to 219mm W. T.: 0.5 to 20mm |
| Specialized in | Large Diameter Size |
| Length | Within 13500mm |
| Type | Seamless |
| Shape | Round |
| End | Plain End, Beveled End, Treaded |
Chemical Composition
| Steel Grade | C | Si | Mn | P | S | Cr | Mo |
| 4130 | 0.28-0.33 | 0.15-0.35 | 0.40-0.60 | ≤0.040 | ≤0.040 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.15-0.35 | 0.75-1.00 | ≤0.040 | ≤0.040 | 0.80-1.10 | 0.15-0.25 |
Mechanical Properties
| Steel Grade | Deliver Condition |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Hardness(HRC) |
| 4130 | + SR | ≥813 | ≥690 | ≥15% | ≥24 |
| 4140 | QT | ≥950 | ≥850 | ≥14% | 28 - 33 |
Key Features and Benefits
Superior Mechanical Properties: High yield strength (550-950 MPa) and excellent impact toughness
Enhanced Collapse Resistance: Heavy-wall design withstands extreme formation pressures
Improved Fatigue Performance: Excellent resistance to cyclic loading and vibration stresses
Multiple Grade Options: Tailored material selection for specific well conditions
Seamless Construction: Homogeneous microstructure without weld defects
Quality Assurance
Full traceability and material certification
Ultrasonic testing for defect detection
Hydrostatic pressure testing
Dimensional and visual inspection
Hardness testing and mechanical property verification
